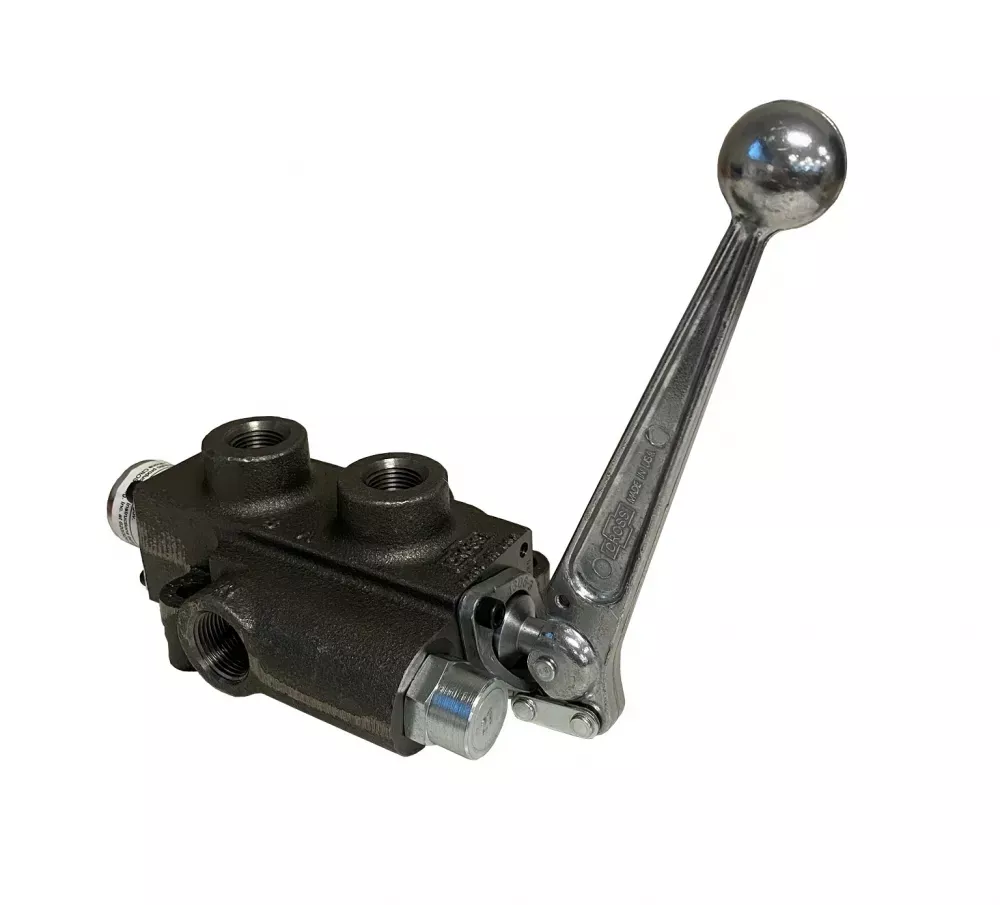

Cross Manf SCV-1 Converta Single Spool Valve

Sale!
Cross Manf SCV-1 Converta Single Spool Valve

Cross Manf SCV-1 Converta Single Spool Valve

Original price was: $173.83.Current price is: $118.10.

62 in stock

SKU: 103980 Category:

Description



Cross SCV1 Converta Valve



The Cross CONVERTA series can be converted to a 3-way valve by using the conversion plug and port plug supplied with the valve. It can also be converted to a 3-position detent valve with a seperate detent kit.

This single spool valve may be used to operate a double or single acting cylinder, or motors that are reversable or one direction when a hold position in neutral is required.

NOTE: Not intended for use in metered lifting circuits.



Product Features:

  • Single spool
  • 3-position, 4-way open centered, spring centered
  • 2000 PSI max operating pressure
  • 25 GPM flow rating
  • 3/4″ NPT inlet & outlet ports
  • 1/2″ NPT work ports
  • Open center, spring centered
  • Built in relief valve (preset @1500psi @ 10gpm)



Field conversion kits available:

  •  Detent kit (3-position) 1V0294



Cross Stock  103980

Cross Product Description:  CONVERTA
