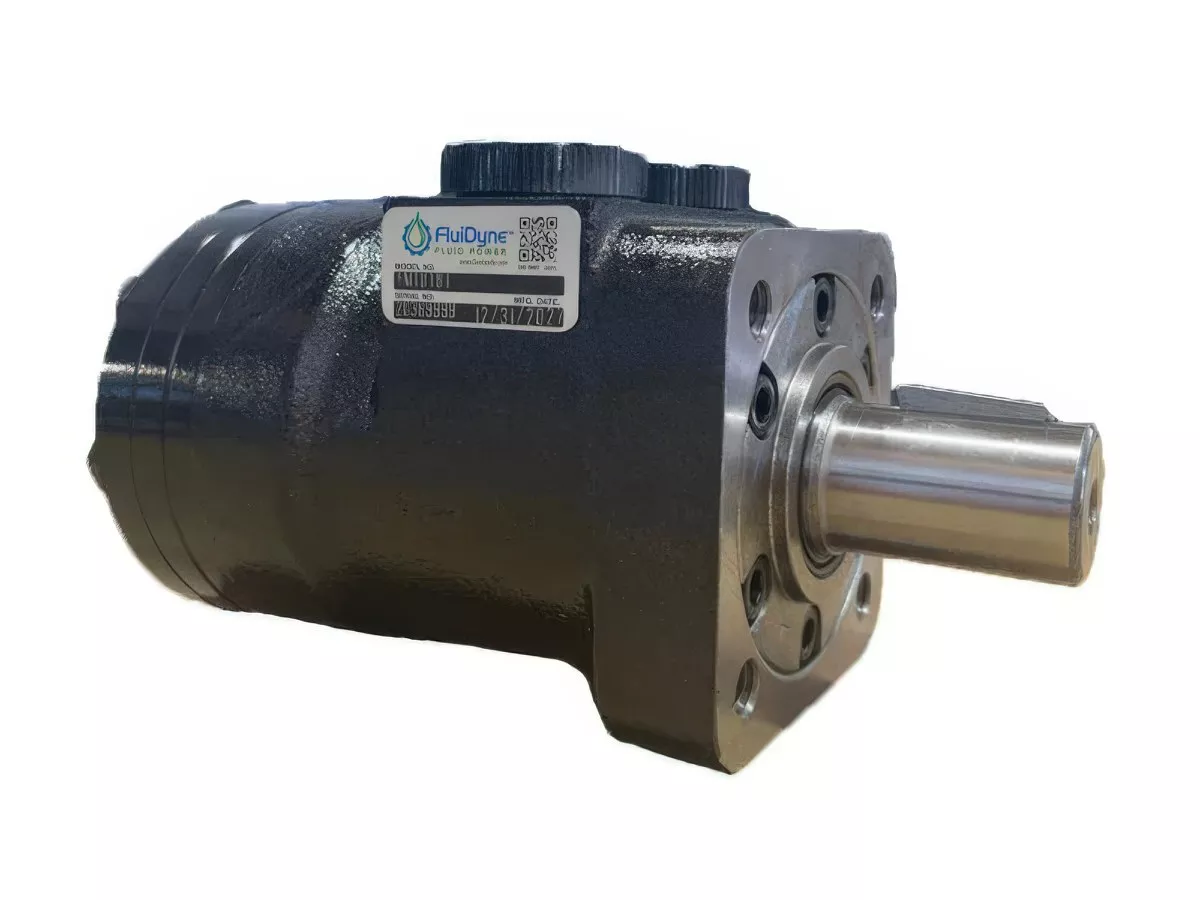

Fluidyne FM14SQ01K080NBN Motor 080CC 4-Bolt SAE A Flange

Description

The Fluidyne FM14SQ01K080NBN is a compact and efficient orbital motor designed for versatile hydraulic applications. This motor features a 4-bolt SAE A square flange, facilitating easy installation while delivering reliable performance and durability.

Specifications

• Model Number: FM14SQ01K080NBN
• Displacement: 080 CC
• Mount Type: 4-Bolt SAE A Square Flange
• Shaft Type: 1″ Woodruff Keyed Shaft
• Ports: 1/2″ NPTF Ports
• Width: 0.41″ (10MM)
• Case Drain: No Case Drain (7/16-20 O’Ring-Plugged)
• Paint Status: Black Paint

Features and Benefits

• High-quality construction for enhanced durability
• Compact design ideal for space-constrained applications
• Easy installation with standardized SAE A flange
• Efficient performance ensuring optimal power transmission
• Made in USA, adhering to strict quality control standards

Applications

• Industrial machinery
• Agricultural equipment
• Construction machinery
• Material handling systems
• Mobile hydraulic systems

Quality and Certification

Fluidyne is committed to delivering products that meet the highest industry standards. The FM14SQ01K080NBN motor is manufactured under rigorous quality guidelines, ensuring each component undergoes stringent testing for durability and performance.

For technical support and assistance, contact our product specialists at (800) 823-4937.

Danfoss, Charlynn FM14SQ01K080NBN Quality Made Aftermarket Replacement with a 12-month manufacturer’s warranty
