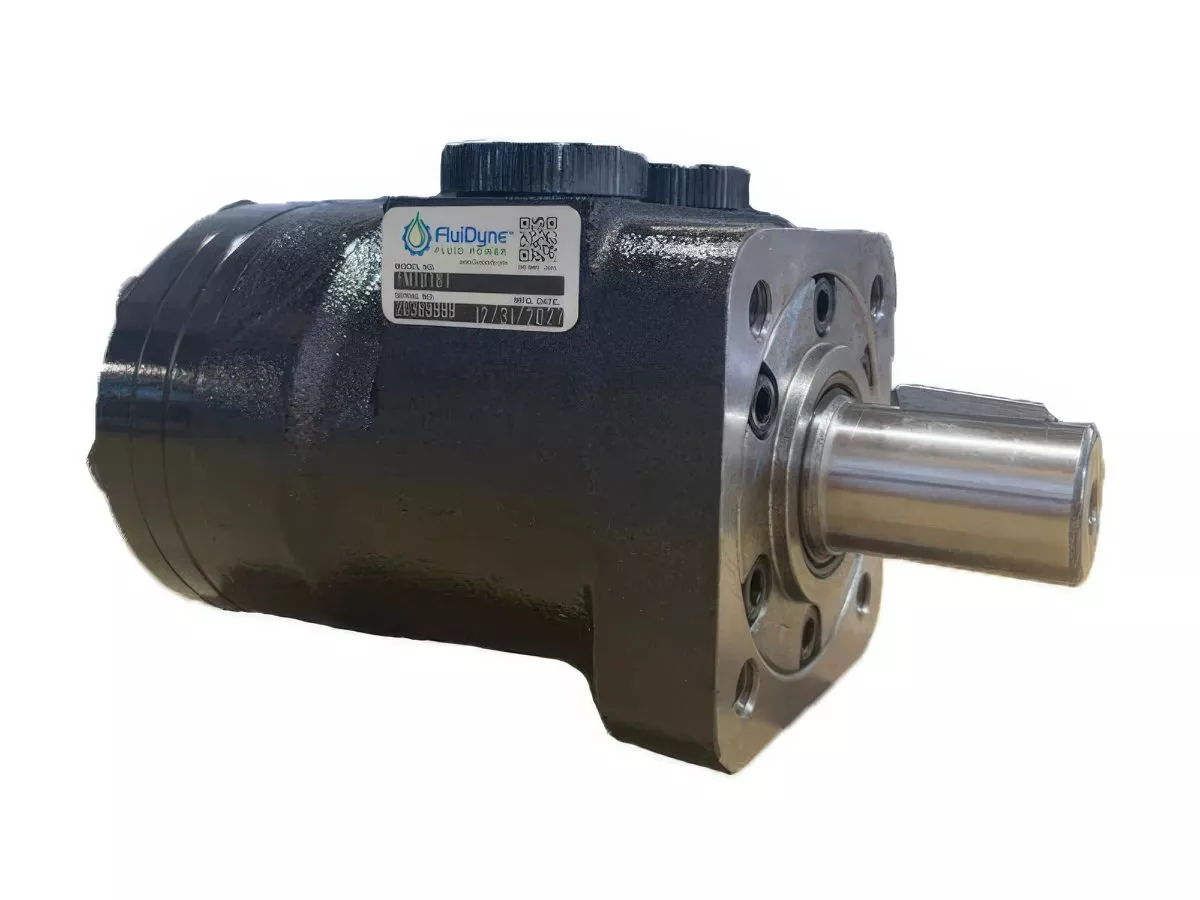

Fluidyne FM1SA206B160SBN Orbital Motor 160CC 2-Bolt A Flange

Description

The Fluidyne FM1SA206B160SBN is a powerful orbital motor engineered for high-performance hydraulic applications. This motor boasts a reliable design with exceptional efficiency, making it ideal for various industrial machinery and equipment.

Features and Benefits

• High displacement of 160 CC for robust performance
• 2-Bolt A flange mounting configuration for versatile installation
• 1″ SAE 6B splined shaft ensuring secure connectivity
• Compatible with standard 7/8-14 O-ring ports for efficient fluid transfer
• Compact design with a width of only 0.83″ (21MM)
• No case drain feature (7/16-20 O’Ring Plugged) for hassle-free operation
• Durably painted in black for corrosion resistance
• Made in USA under strict quality control standards

Specifications

• Model Number: FM1SA206B160SBN
• Displacement: 160 CC
• Mount Type: 2 Bolt A Flange Mount
• Shaft Type: 1″ SAE 6B Splined Shaft
• Ports: 7/8-14 O-Ring Ports
• Width: 0.83″ (21MM)
• Case Drain: No Case Drain (7/16-20 O’Ring Plugged)
• Paint Status: Black Paint

Applications

• Industrial machinery
• Material handling equipment
• Agricultural machinery
• Construction equipment
• Mobile hydraulic systems

Quality and Certification

Manufactured in adherence to Fluidyne’s stringent quality standards, this orbital motor meets or exceeds essential industry certifications for hydraulic applications. Each component undergoes thorough testing to ensure dependable performance and a long operating lifespan.

For technical support and assistance, contact our product specialists at (800) 823-4937.

Danfoss, Charlynn OM-125-CROSS Quality Made Aftermarket Replacement with a 12-month manufacturer’s warranty
