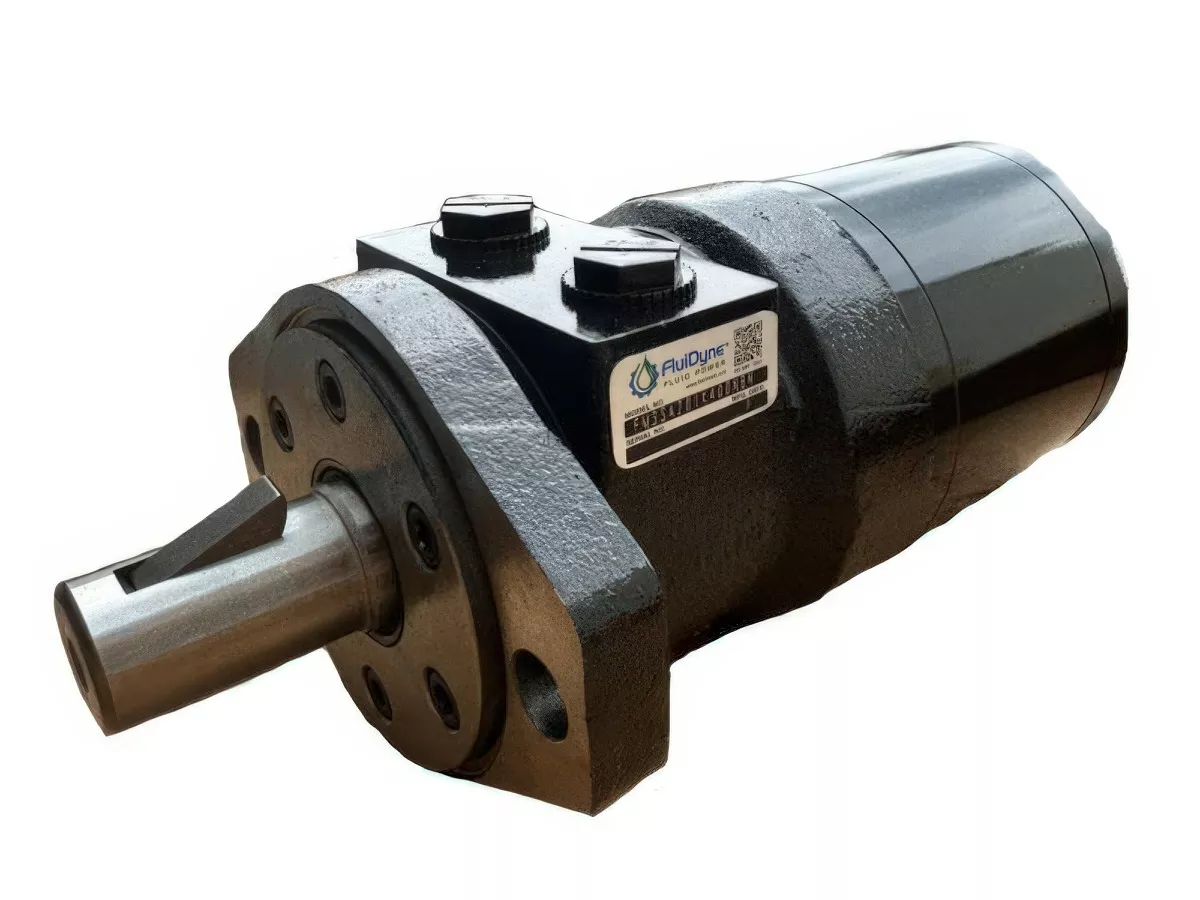

Fluidyne FM34SQ06B080NBN 080CC 4-Bolt SAE A Orbital Motor

Description

The Fluidyne FM34SQ06B080NBN is a highly efficient orbital motor engineered for demanding hydraulic applications. With its compact design and 4-Bolt SAE A square flange mounting configuration, this motor provides reliable operation across various industrial settings.

Specifications

• Model Number: FM34SQ06B080NBN
• Displacement: 080 CC
• Mount Type: 4-Bolt SAE A Square Flange
• Shaft Type: 1″ 6B Splined Shaft
• Ports: 1/2″ NPTF Ports
• Width: 0.63″ (16MM)
• Case Drain: 7/16-20 O’Ring Case Drain (Plugged)
• Pressure Rating: Standard hydraulic pressures suitable for variable applications

Features and Benefits

• Robust construction suitable for heavy-duty use
• Seamless integration into existing hydraulic systems
• Compact design allows for versatile installation options
• Durable black paint finish enhances longevity
• Made in the USA following stringent quality standards

Applications

• Industrial machinery
• Agricultural equipment
• Material handling systems
• Construction machinery
• Mobile hydraulic applications

Quality and Certification

The Fluidyne FM34SQ06B080NBN adheres to the highest quality standards set by Fluidyne. This motor is certified to meet industry regulations, ensuring optimal performance and reliability. Every unit undergoes rigorous testing to verify that it meets or surpasses stringent performance benchmarks.

For technical support and assistance, contact our product specialists at (800) 823-4937

Danfoss, Charlynn FM34SQ06B080NBN Quality Made Aftermarket Replacement with a 12-month manufacturer’s warranty
